Kennametal

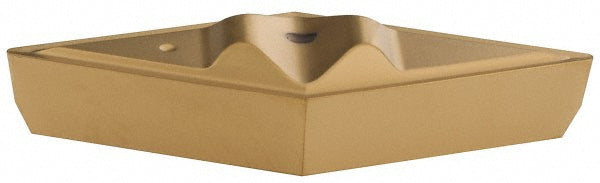

VCGR160404 Cermet Insert, Grade KT315, TiN - Kennametal 1511189
MFR# 1511189ISO/ANSI# VCGR160404Series Top Not
$41.88List $50.23
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1511189 is a VCGR160404 cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiN
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6538
Insert materialCermet
Insert size code331
Insert styleVPGR
Iso codeVCGR160404
Manufacturer gradeKT315
Material gradeP10; K10
Maximum depth of cut0.2179
Msc manufacturer numberVPGR331
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.6538
StandardsVPGR331; VCGR160404
Thickness in3/16
Width in3/8
