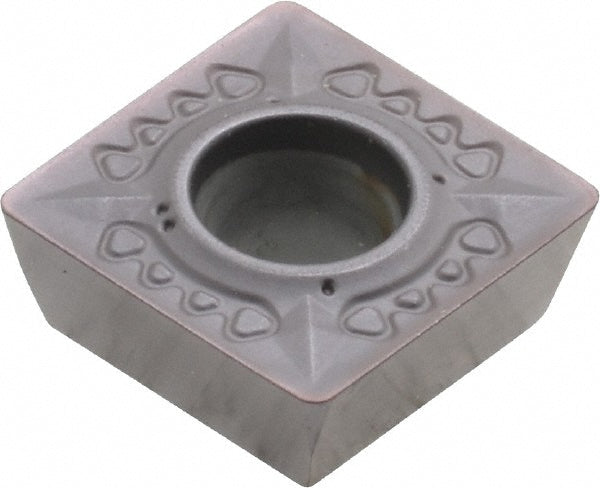

SDET1204PDERGB Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 1536224

Kennametal

SDET1204PDERGB Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 1536224

MFR# 1536224ISO/ANSI# SDET1204PDERGBCat# SDET1204PDERGBSeries SDET

$37.79List $45.33 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1536224 is a SDET1204PDERGB solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.

Specifications

Chip breakerGB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSDET
Iso codeSDET1204PDERGB
Manufacturers catalog numberSDET1204PDERGB
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Primary workpiece materialCast Iron
Rake angle5
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
