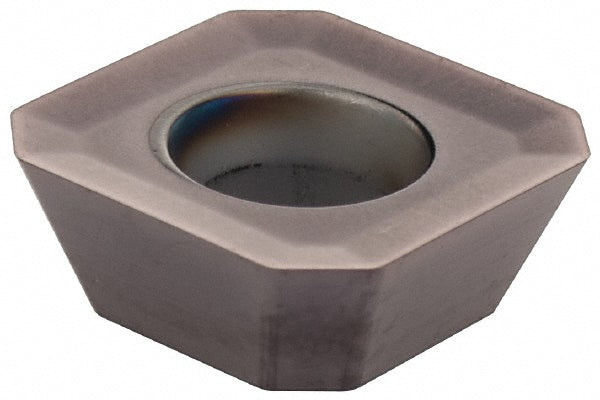

SEHT1204AFN Solid Carbide Insert, Grade KC510M, TiAlN - Kennametal 1547308

Kennametal

SEHT1204AFN Solid Carbide Insert, Grade KC510M, TiAlN - Kennametal 1547308

MFR# 1547308ISO/ANSI# SEHT1204AFNCat# SEHT1204AFNSeries SEHT

$46.25List $55.48 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC510M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1547308 is a SEHT1204AFN solid carbide indexable insert, grade KC510M, TiAlN coated. Suited for steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeSEHT43A6
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutting edge styleSharp
Hole diameter0.2165
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEHT
Iso codeSEHT1204AFN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEHT1204AFN
Manufacturer gradeKC510M
Material applicationSteel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
