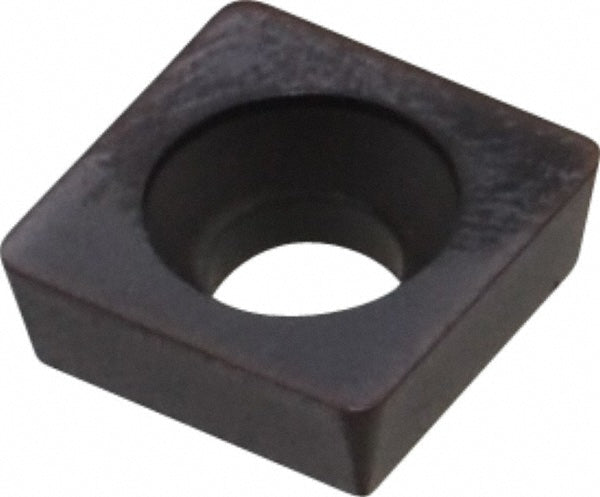

SPEB090308 Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 1556948
MFR# 1556948ISO/ANSI# SPEB090308Cat# SPEB090308Series SPEB
$34.80List $42.48
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1556948 is a SPEB090308 solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1563
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size32
Insert size code322
Insert styleSPEB
Iso codeSPEB090308
Manufacturers catalog numberSPEB090308
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Primary workpiece materialCast Iron
Relief angle11.00
Thickness in1/8
Thickness range0.1250 to 0.1500
