Kennametal

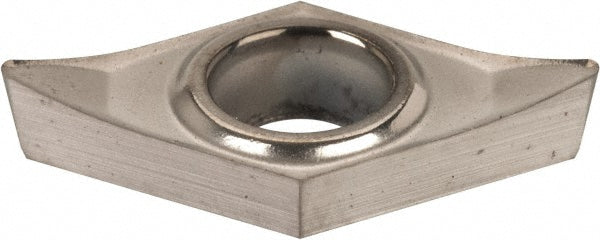

D - Diamond (Rhombic) 55-Deg 1/4" IC Carbide Insert, Grade KC5410, TiB2 - Kennametal 1560721
MFR# 1560721ISO/ANSI# DPGT070204Series Screw-On
$32.45List $38.92
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1560721 is a carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeDPGT2151
Ansi size code2151
Chip breakerHP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiB2
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle55
Industry standard numberDPGT2151HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code2151
Insert styleDPGT
Insert thickness in3/32
Iso insert codeDPGT070204
Iso size code070204
Length range0.6000 - 0.6500
Manufacturers catalog number1560721
Manufacturer gradeKC5410
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
