Kennametal

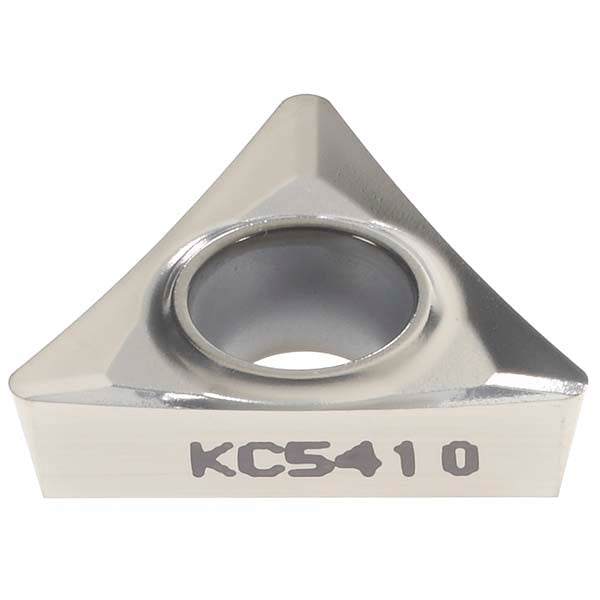

T - Triangle 3/8" IC Carbide Insert, Grade KC5410, TiB2 - Kennametal 1560759
MFR# 1560759ISO/ANSI# TPGT16T308Series Screw-On
$39.35List $47.20
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1560759 is a carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeTPGT3252
Ansi size code3252
Chip breakerHP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiB2
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle60
Industry standard numberTPGT3252HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3252
Insert styleTPGT
Insert thickness in5/32
Iso insert codeTPGT16T308
Iso size code16T308
Length range0.6000 - 0.6500
Manufacturers catalog number1560759
Manufacturer gradeKC5410
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
