Kennametal

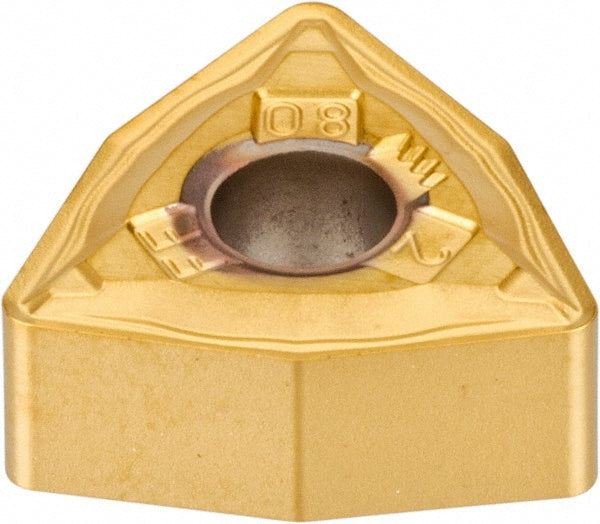

W - Trigon 80-Deg 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1602304
MFR# 1602304ISO/ANSI# WNMG060408Series KENLOC
$20.43List $24.50
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1602304 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeWNMG332
Ansi size code332
Chip breakerFF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1500
Included angle80
Industry standard numberWNMG332FF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5130
Insert materialCermet
Insert shapeW - Trigon 80-Deg
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG060408
Iso size code060408
Length range0.5000 - 0.6000
Manufacturers catalog number1602304
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5130
Wiper edgeNo
