Kennametal

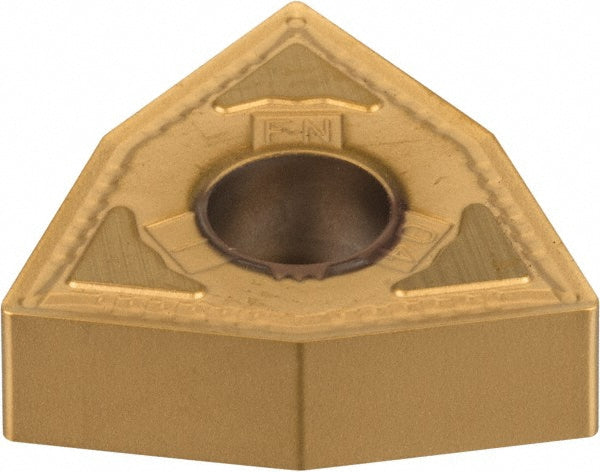

W - Trigon 80-Deg 1/2" IC Cermet Insert, Grade KT315, TiN - Kennametal 1611414
MFR# 1611414ISO/ANSI# WNMG080404Series KENLOC
$28.21List $33.83
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1611414 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeWNMG431
Ansi size code431
Chip breakerFN
Chip breaker operationFinishing
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.2031
Included angle80
Industry standard numberWNMG431FN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCermet
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG080404
Iso size code080404
Length range0.6500 - 0.7000
Manufacturers catalog number1611414
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
