Kennametal

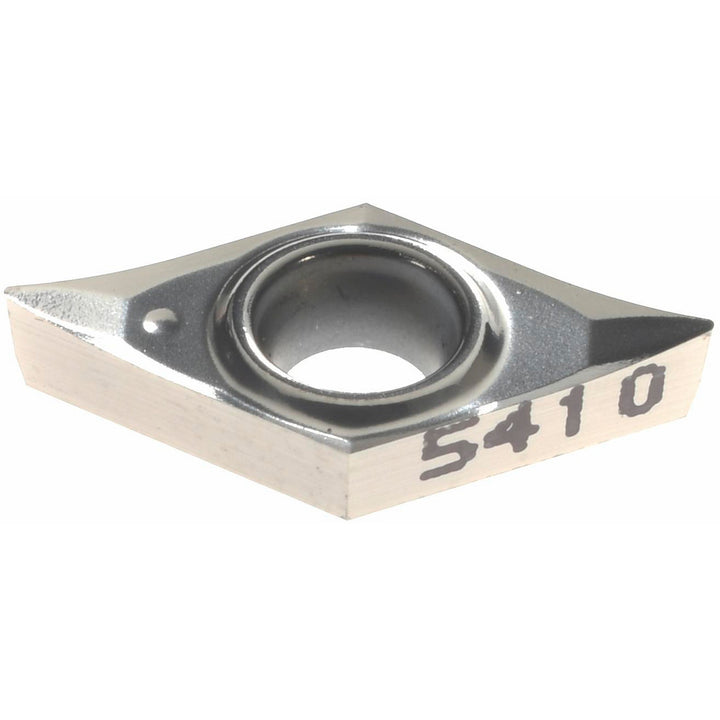

D - Diamond (Rhombic) 55-Deg 1/4" IC Carbide Insert, Grade KC5410, TiB2 - Kennametal 1623200
MFR# 1623200ISO/ANSI# DCGT070202Series Screw-On
$28.31List $34.55
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1623200 is a carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeDCGT21505
Ansi size code21505
Chip breakerHP
Chip breaker operationFinishing
Clearance codeC
Coating finishTiB2
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle55
Industry standard numberDCGT21505HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21505
Insert styleDCGT
Insert thickness in3/32
Iso insert codeDCGT070202
Iso size code070202
Length range0.6000 - 0.6500
Manufacturers catalog number1623200
Manufacturer gradeKC5410
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
