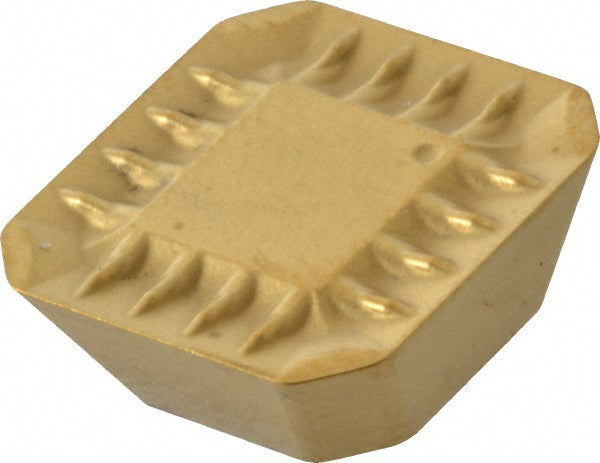

SEKR1204AFENGP Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1719253

Kennametal

SEKR1204AFENGP Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1719253

MFR# 1719253ISO/ANSI# SEKR1204AFENGPCat# SEKR1204AFENGPSeries SEKR

$37.19List $44.60 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 1719253 is a SEKR1204AFENGP solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerGP
Coating finishTiN
Coating processPVD
Corner radius0.0433
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSEKR
Iso codeSEKR1204AFENGP
Manufacturers catalog numberSEKR1204AFENGP
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle30
Relief angle20.00
Thickness0.1827
Thickness range0.1750 to 0.1850
