Kennametal

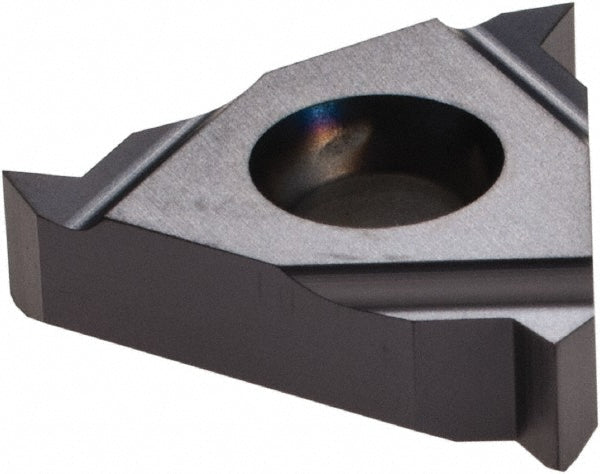

3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1724406
MFR# 1724406
$52.62List $63.12
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1724406 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Hole diameter0.1551
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert style16ER
Manufacturer gradeKC5010
Pitch (mm)0.50-1.50
Thickness0.1430
Threads per inch48-16
Thread standardPartial Profile 60 Degree
Thread typeExternal
