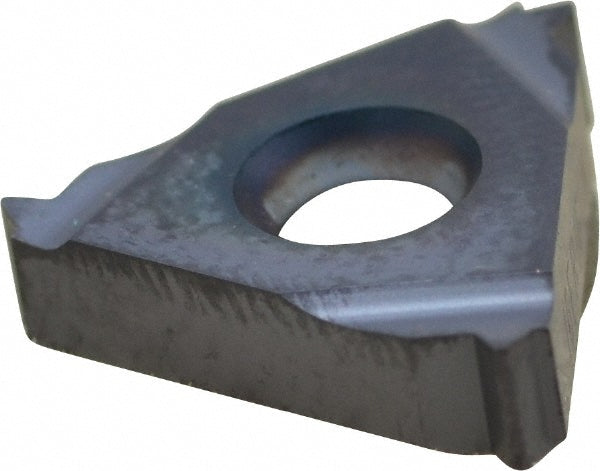

LT16ER16UN Carbide Insert, Grade KC5025, TiAlN - Kennametal 1724737

Kennametal

LT16ER16UN Carbide Insert, Grade KC5025, TiAlN - Kennametal 1724737

MFR# 1724737ISO/ANSI# LT16ER16UNCat# LT16ER16UN

$52.62List $63.12 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1724737 is a LT16ER16UN carbide indexable insert, grade KC5025, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Coating finishTiAlN
Coating processPVD
Cutting edge to theoretical edge length0.0350
Face of insert to tip centerline0.0430
Hole diameter0.1551
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert styleER
Iso codeLT16ER16UN
Manufacturers catalog numberLT16ER16UN
Manufacturer gradeKC5025
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Thickness0.1430
Threads per inch16
Thread standardUN
Thread typeExternal
