Kennametal

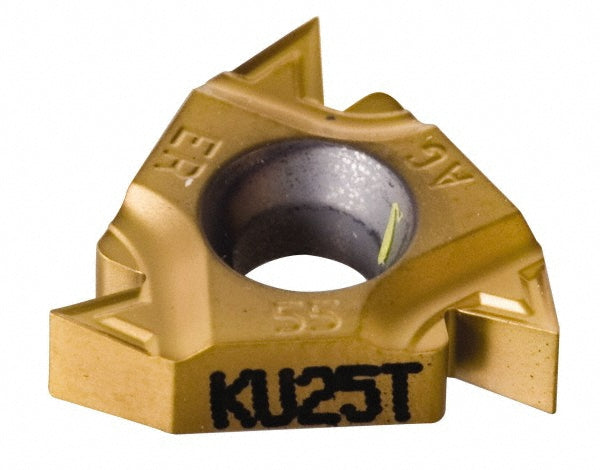

3/8" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1743702
MFR# 1743702
$52.62List $63.12
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1743702 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0031
Hole diameter0.1551
Inscribed circle in3/8
Insert handLeft Hand
Insert materialCarbide
Insert style16EL
Manufacturer gradeKC5025
Pitch (mm)0.50-3.00
Thickness0.1430
Threads per inch48-8
Thread standardPartial Profile 60 Degree
Thread typeExternal
