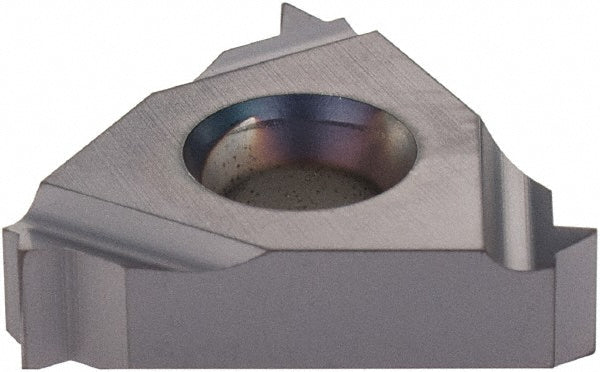

LT16NR14UN Carbide Insert, Grade KC5025, TiAlN - Kennametal 1743924

Kennametal

LT16NR14UN Carbide Insert, Grade KC5025, TiAlN - Kennametal 1743924

MFR# 1743924ISO/ANSI# LT16NR14UNCat# LT16NR14UN

$52.62List $63.12 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1743924 is a LT16NR14UN carbide indexable insert, grade KC5025, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Coating finishTiAlN
Coating processPVD
Cutting edge to theoretical edge length0.0350
Face of insert to tip centerline0.0470
Hole diameter0.1551
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert styleNR
Iso codeLT16NR14UN
Manufacturers catalog numberLT16NR14UN
Manufacturer gradeKC5025
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Thickness0.1430
Threads per inch14
Thread standardUN
Thread typeInternal
