Kennametal

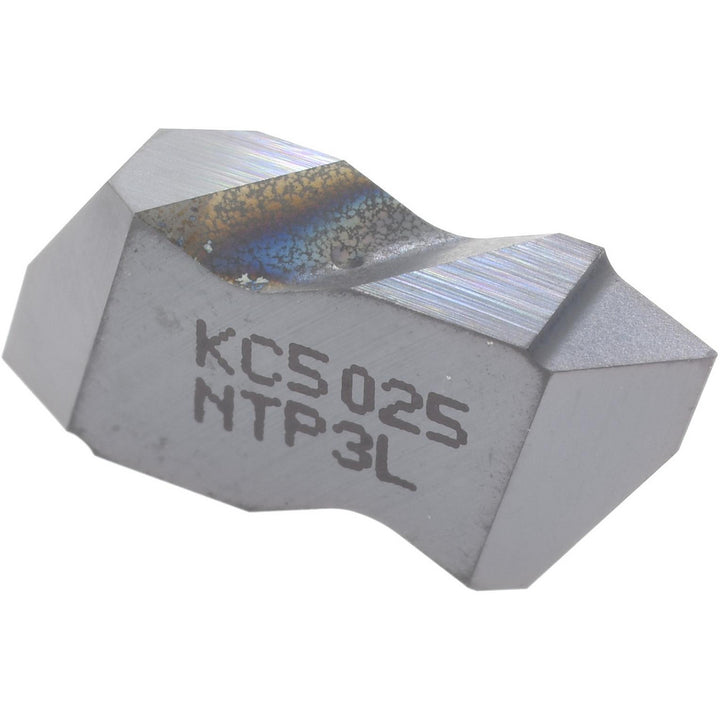

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1764576
MFR# 1764576Series Top Notch
$38.27List $45.90
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1764576 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0065
External pitch1.25-4.00 mm; 6-20 TPI
Finish coatingTiAlN
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNTP
Internal pitch2.00 to 5.00 mm; 5 to 12 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.1949
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0980
