Kennametal

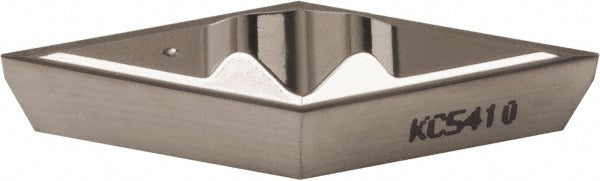

VCGR160402 Carbide Insert, Grade KC5410, TiB2 - Kennametal 1782505
MFR# 1782505ISO/ANSI# VCGR160402Series Top Not
$40.79List $48.93
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1782505 is a VCGR160402 carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiB2
Coating processPVD
Corner radius0.0080
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6538
Insert materialCarbide
Insert size code3305
Insert styleVPGR
Iso codeVCGR160402
Manufacturer gradeKC5410
Material gradeN05; N10; N15; N20
Maximum depth of cut0.2179
Msc manufacturer numberVPGR3305
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.6538
StandardsVPGR3305; VCGR160402
Thickness in3/16
Width in3/8
