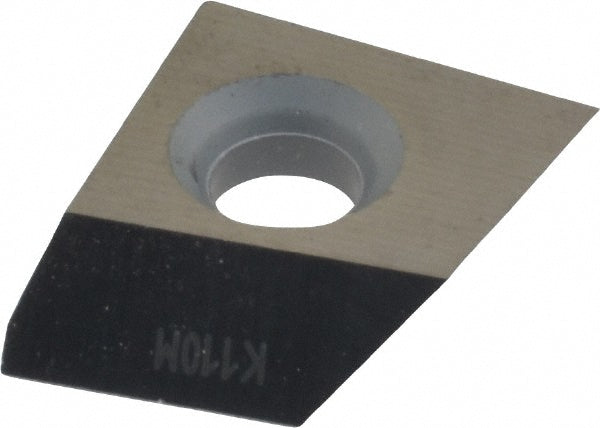

BGHX15L5PCTRGG Solid Carbide Insert, Grade K110M - Kennametal 1794653

Kennametal

BGHX15L5PCTRGG Solid Carbide Insert, Grade K110M - Kennametal 1794653

MFR# 1794653ISO/ANSI# BGHX15L5PCTRGGCat# BGHX15L5PCTRGGSeries BGHX

$34.71List $42.37 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradeK110M
MaterialSolid Carbide

Description

The Kennametal 1794653 is a BGHX15L5PCTRGG solid carbide indexable insert, grade K110M. Suited for cast iron, non-ferrous metal.

Specifications

Ansi codeBGHX15L5PCTRGG
Chip breakerGG
Coating processUncoated
Cutter series compatibilityFix-Perfect
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.1969
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size15
Insert size code15L5
Insert styleBGHX
Iso codeBGHX15L5PCTRGG
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog numberBGHX15L5PCTRGG
Manufacturer gradeK110M
Material applicationCast Iron; Non-Ferrous Metal
Material gradeC2; C3
Maximum depth of cut0.4134
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Rake angle30
Relief angle30.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1970
Thickness range0.1850 to 0.2000
