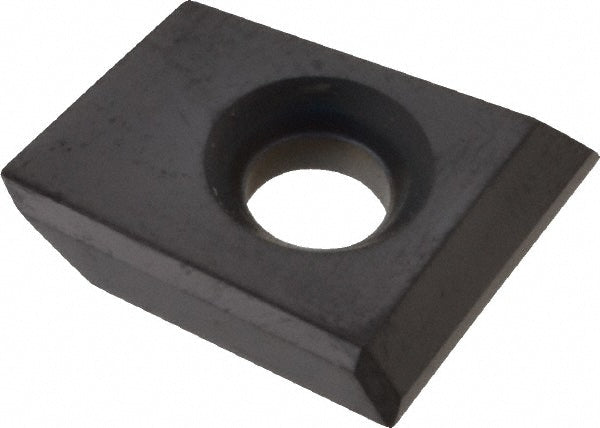

BGHX15L5PCTRGG Solid Carbide Insert, Grade KC510M, TiAlN - Kennametal 1794655

Kennametal

BGHX15L5PCTRGG Solid Carbide Insert, Grade KC510M, TiAlN - Kennametal 1794655

MFR# 1794655ISO/ANSI# BGHX15L5PCTRGGCat# BGHX15L5PCTRGGSeries BGHX

$53.68List $64.38 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradeKC510M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1794655 is a BGHX15L5PCTRGG solid carbide indexable insert, grade KC510M, TiAlN coated. Suited for steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeBGHX15L5PCTRGG
Chip breakerGG
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityFix-Perfect
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.1969
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size15
Insert size code15L5
Insert styleBGHX
Iso codeBGHX15L5PCTRGG
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog numberBGHX15L5PCTRGG
Manufacturer gradeKC510M
Material applicationSteel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle30
Relief angle30.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1970
Thickness range0.1850 to 0.2000
