Kennametal

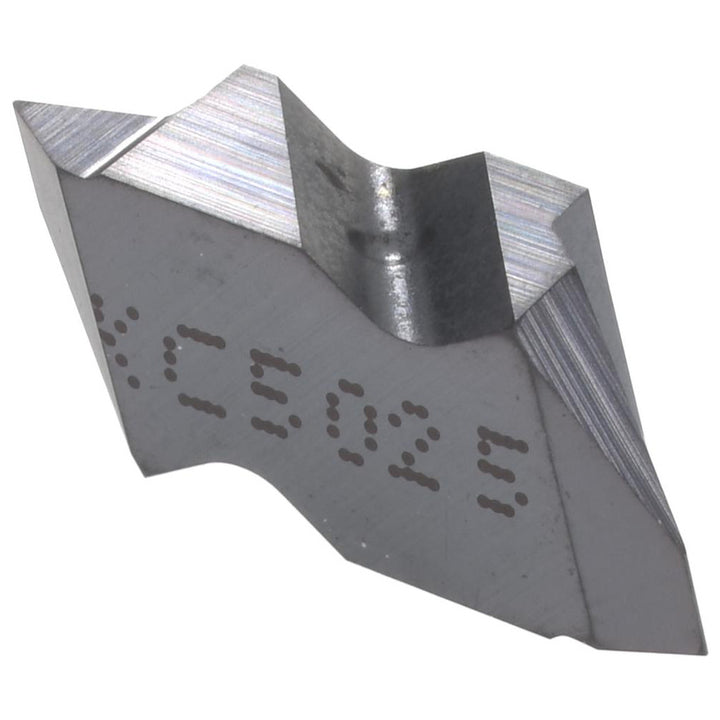

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1795795
MFR# 1795795Series Top Notch
$37.01List $44.38
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1795795 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0031
External pitch0.60-1.75 mm; 14-44 TPI
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleNTK
Internal pitch1.00 to 2.00 mm; 12 to 24 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.15
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.1098
