Kennametal

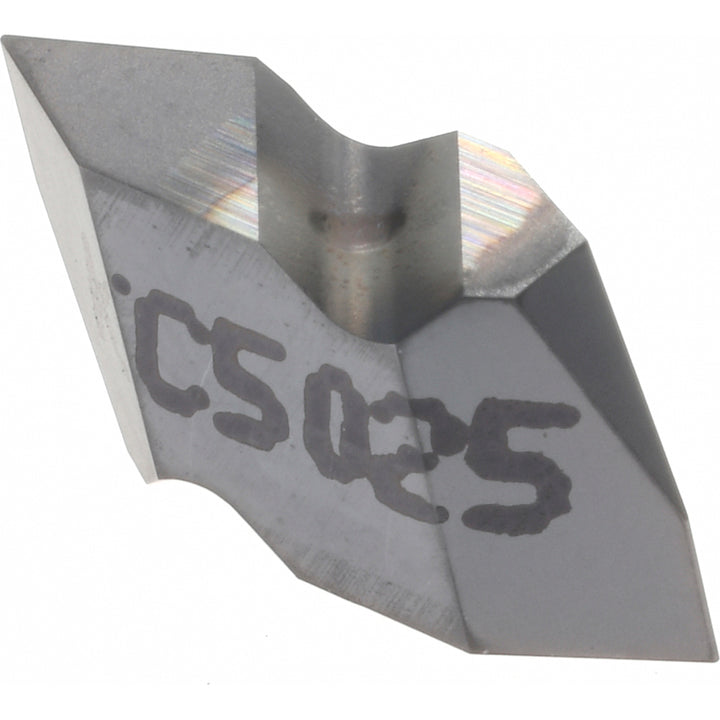

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1796050
MFR# 1796050Series Top Notch
$29.27List $35.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1796050 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
External pitch0.70-3.00 mm; 8-36 TPI
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleNT
Internal pitch1.25 to 3.50 mm; 7 to 20 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.15
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0752
