Kennametal

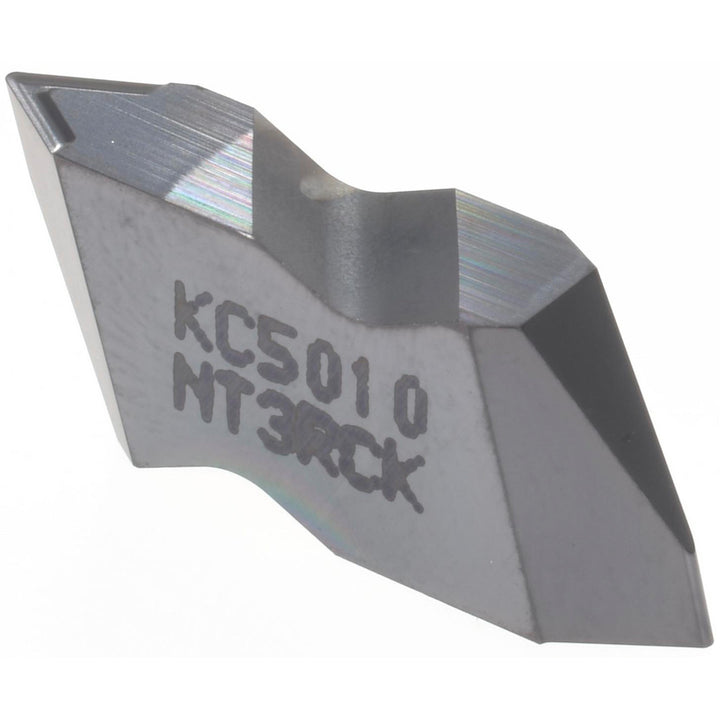

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1796121
MFR# 1796121Series Top Notch
$33.30List $40.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1796121 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
ChipbreakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0134
External pitch2.50-4.00 mm; 6-11 TPI
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNT
Internal pitch4.00 mm; 6 TPI
Manufacturer gradeKC5010
Material gradeC3; C4
Thickness0.1949
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0980
