Kennametal

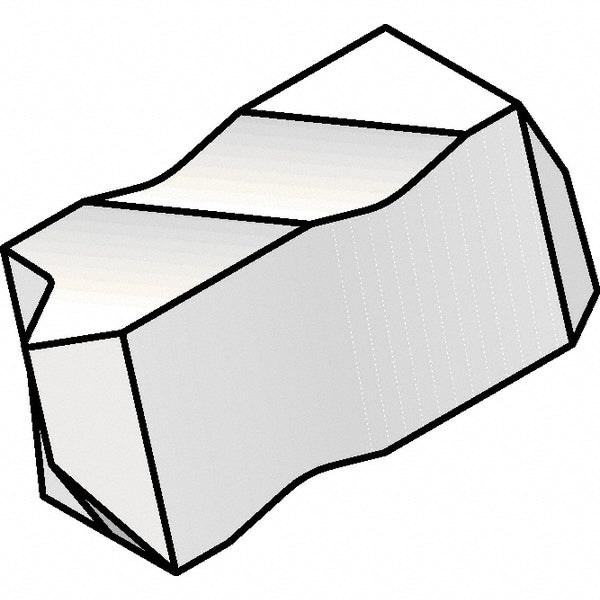

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1796397
MFR# 1796397Series Top Notch
$34.13List $41.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1796397 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0068
External pitch24 TPI
Finish coatingTiAlN
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size3007
Insert styleNJF
Manufacturer gradeKC5010
Material gradeC3; C4
Thickness0.1949
Thread standardUNJ
Thread typeExternal
Tip to top of insert0.1409
