Kennametal

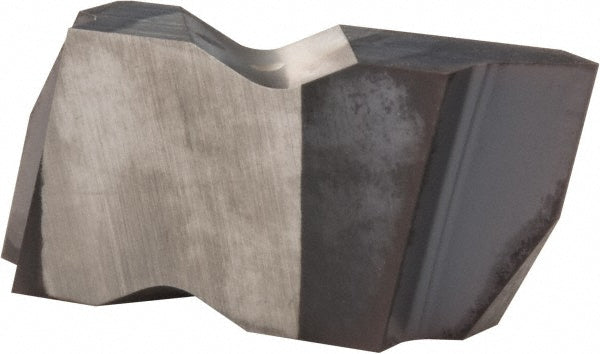

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1796403
MFR# 1796403Series Top Notch
$40.27List $48.31
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1796403 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0051
External pitch32 TPI
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3005
Insert styleNJF
Manufacturer gradeKC5010
Material gradeC3; C4
Thickness0.1949
Thread standardUNJ
Thread typeExternal
Tip to top of insert0.1409
