Kennametal

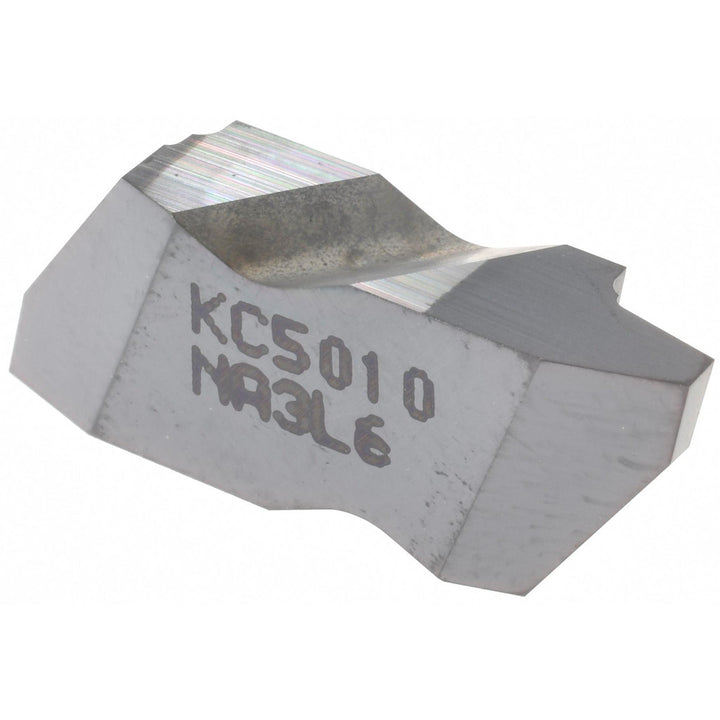

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1796511
MFR# 1796511Series Top Notch
$40.01List $47.98
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1796511 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0570
Finish coatingTiAlN
Included angle29
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNA
Internal pitch6 TPI
Manufacturer gradeKC5010
Material gradeC3; C4
Thickness0.1949
Thread standardAcme
Thread typeInternal; External
Tip to top of insert0.1492
Width of cutting tip0.0567
