Kennametal
Carbide Insert, Grade KC5010, TiAlN - Kennametal 1796514
MFR# 1796514Series Top Notch
$33.89List $41.36
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description

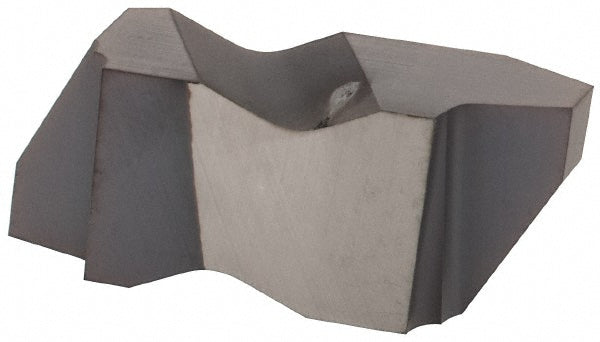

The Kennametal 1796514 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Finish coatingTiAlN
Included angle29
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNA
Internal pitch5 TPI
Manufacturer gradeKC5010
Material gradeC3; C4
Thickness0.1949
Thread standardAcme
Thread typeInternal; External
Tip to top of insert0.1492
Width of cutting tip0.0689
