Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 1796551
MFR# 1796551Series Top Notch
$34.45List $42.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

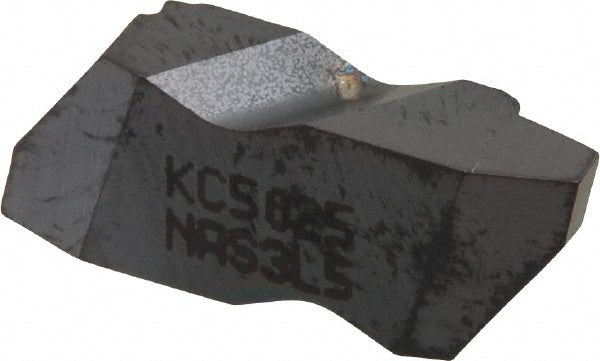

The Kennametal 1796551 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Finish coatingTiAlN
Included angle29
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNAS
Internal pitch5 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.1949
Thread standardStub Acme
Thread typeInternal; External
Tip to top of insert0.1492
Width of cutting tip0.0791
