Kennametal

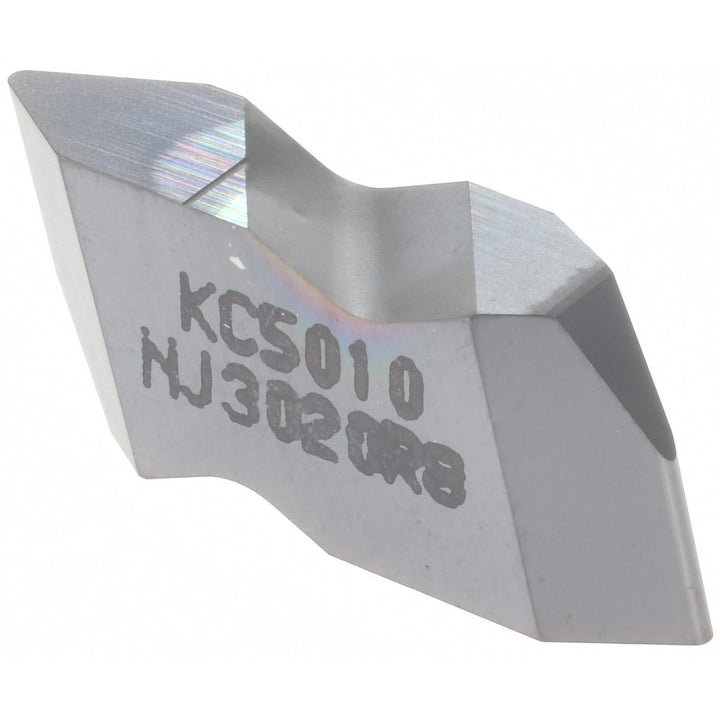

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1796552
MFR# 1796552Series Top Notch
$38.90List $46.66
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1796552 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0193
External pitch8 TPI
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3020
Insert styleNJ
Manufacturer gradeKC5010
Material gradeC3; C4
Thickness0.1949
Thread standardUNJ
Thread typeExternal
Tip to top of insert0.0980
