Kennametal

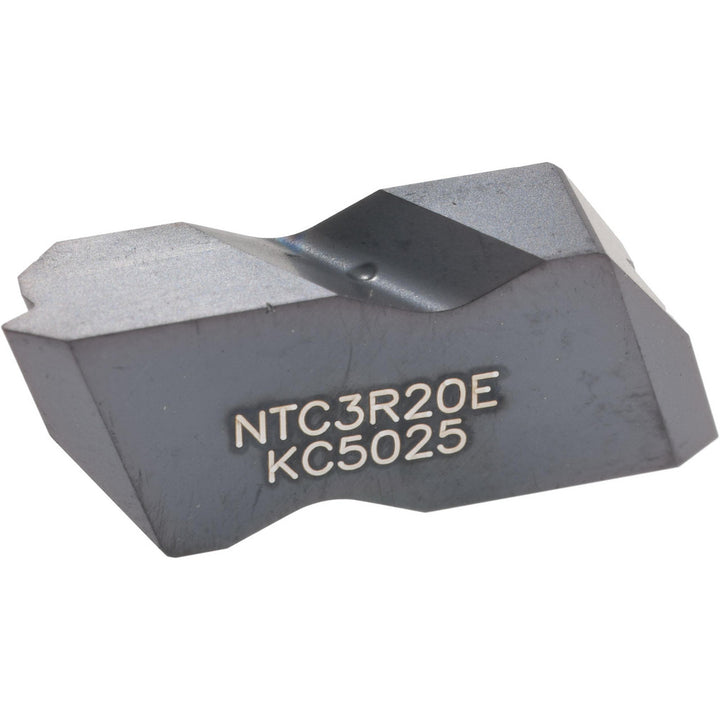

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1799410
MFR# 1799410Series Top Notch
$40.34List $48.38
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1799410 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0063
External pitch20 TPI
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNTC
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.1949
Thread standardUN
Thread typeExternal
Tip to top of insert0.1480
