Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 1799525
MFR# 1799525Series Top Notch
$42.73List $52.15
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

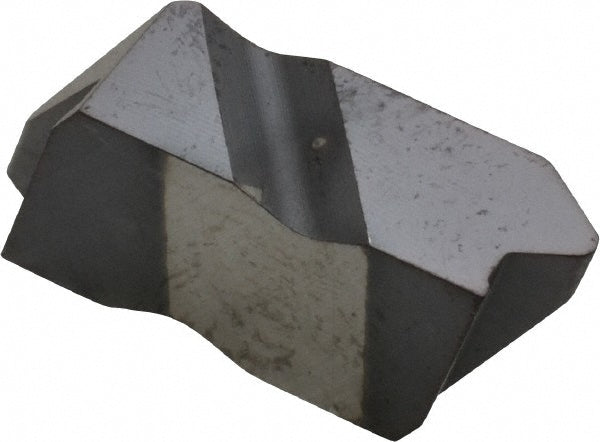

The Kennametal 1799525 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0354
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size4038
Insert styleNDC
Internal pitch4 TPI
Manufacturer gradeKC5025
Material gradeC2; C6
Thickness0.2551
Thread standardAPI Rotary Shoulder Connections
Thread typeInternal; External
Tip to top of insert0.1831
