Kennametal

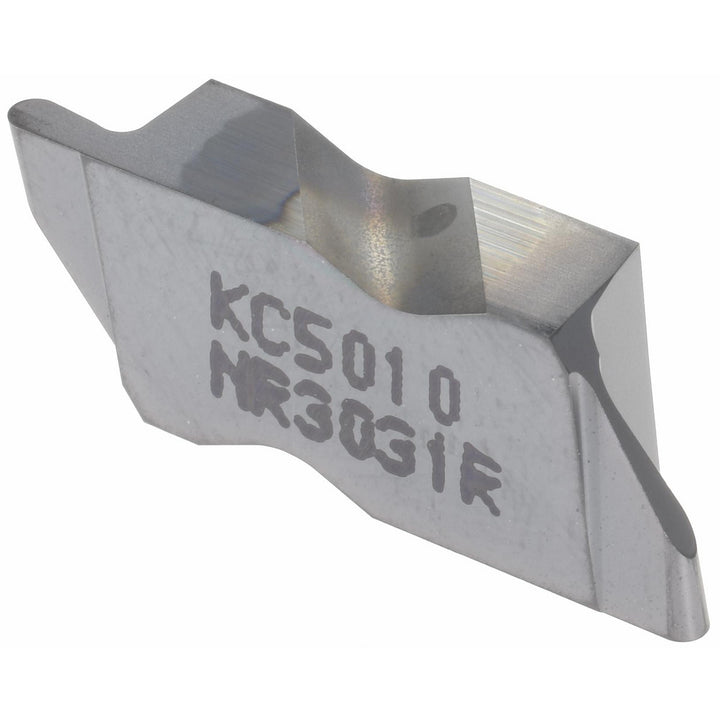

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1801779
MFR# 1801779Series Top Notch
$41.97List $50.34
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1801779 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0311
Cutting width0.0622
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert height0.3440
Insert materialCarbide
Insert size3031
Insert styleNR
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0941
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Msc manufacturer numberNR3031R/L
Multi use toolNo
RakeNeutral
