Kennametal

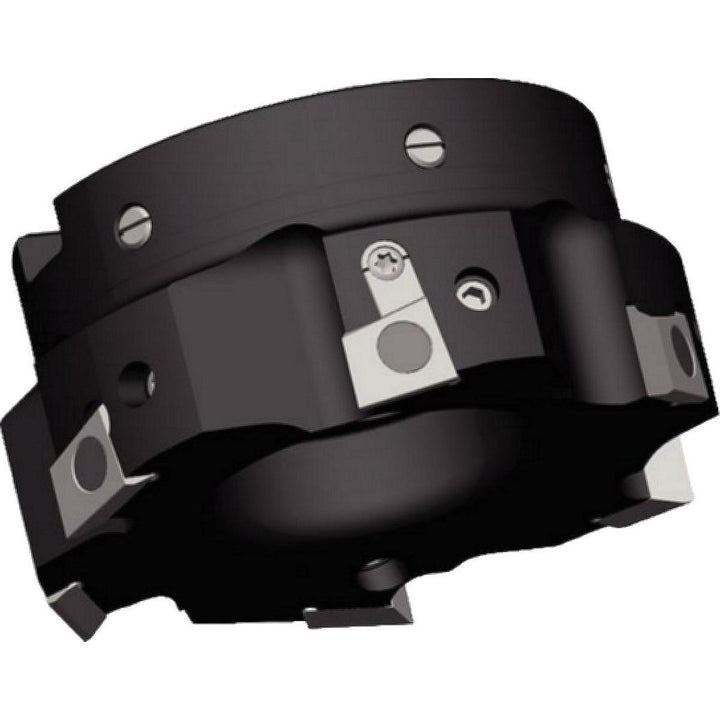

Indexable Milling Cutters - Kennametal 1803178
MFR# 1803178Series Fix-Perfect
$1,000.87List $1,200.44
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Kennametal 1803178 indexable milling cutters. Series Fix-Perfect.
Specifications
Arbor hole diameter in1
Compatible insert size codeBGHX 15L5...
Coolant throughYes
Cutting directionRight Hand
Hub diameter2.0315
Insert holding methodClamp
Keyway width0.3900
Lead angle0/90
Maximum body diameter2.9250
Maximum cutting diameter in3
Maximum depth of cut0.3940
Number of cutter inserts5
Number of flutes5
Overall height in1-3/4
Pitch typeCoarse
RakePositive
Rake angle24.00
