Kennametal

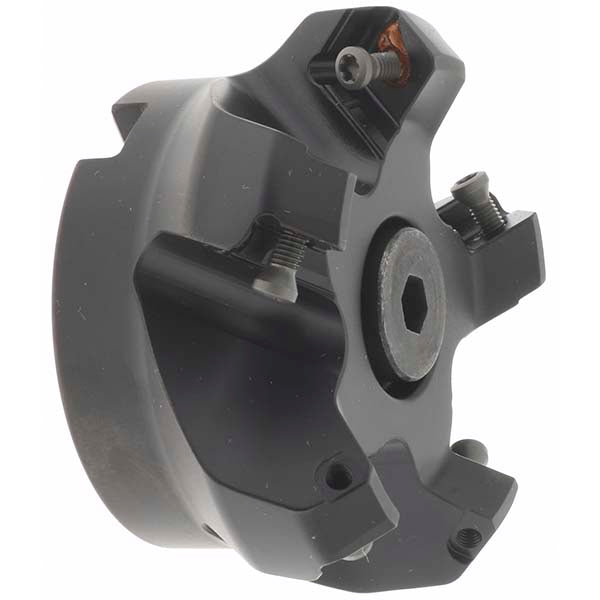

Indexable Milling Cutters - Kennametal 1817869
MFR# 1817869Series KSSM
$627.00List $765.34
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Kennametal 1817869 indexable milling cutters. Series KSSM.
Specifications
Arbor hole diameter in1
Compatible insert size codeSEKT 1404
Coolant throughNo
Cutter styleKSSISR
Cutting directionRight Hand
Hub diameter2.1902
Insert holding methodScrew
Keyway width0.3900
Maximum body diameter3.0240
Maximum cutting diameter3.0240
Maximum depth of cut0.2600
Maximum rpm20200
Minimum cutting diameter2.4800
Number of cutter inserts5
Number of flutes5
Overall height1.5750
Pitch typeMedium
