Kennametal

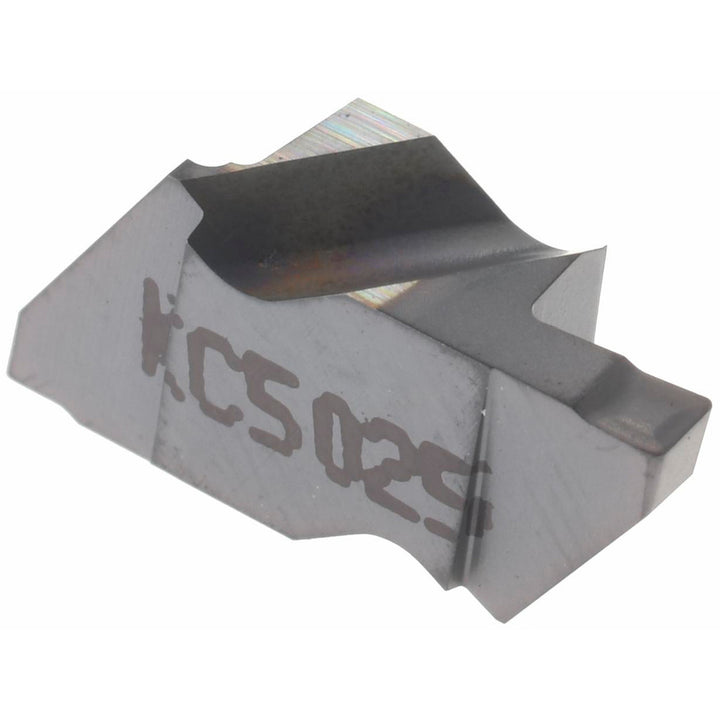

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1818006
MFR# 1818006Series Top Notch
$40.46List $48.52
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1818006 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting width0.0622
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size2062
Insert styleNG
Lead angle3
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
