Kennametal

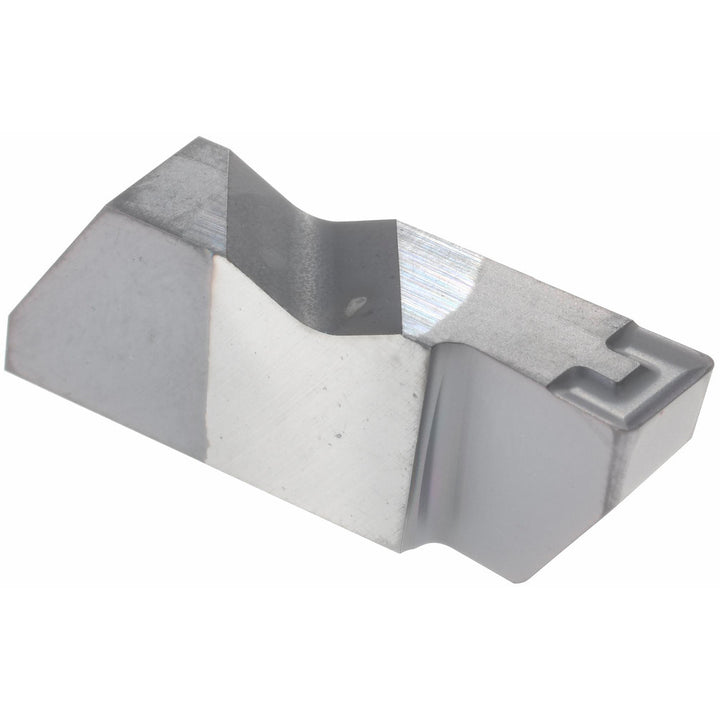

Carbide Insert, Grade KC5010, TiAlN - Kennametal 1818262
MFR# 1818262Series Top Notch
$32.88List $39.44
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1818262 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0225
Cutting width0.1890
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.3440
Insert materialCarbide
Insert size3189
Insert styleNGD
Lead angle3
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Msc manufacturer numberNGD3189R/LK
Multi use toolNo
RakePositive
Rake angle10
