Kennametal

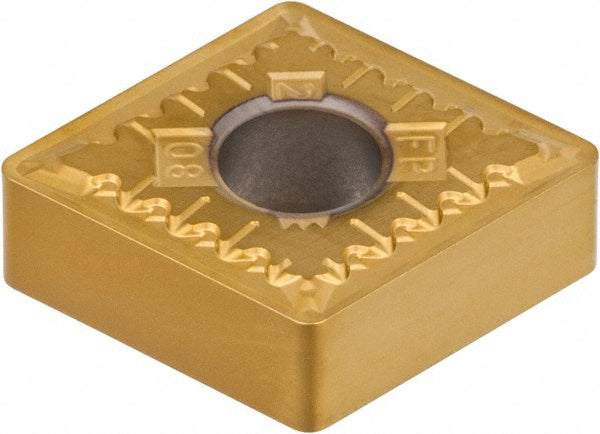

C - Diamond (Rhombic) 80-Deg 1/2" IC Cermet Insert, Grade KT315, TiN - Kennametal 1819207
MFR# 1819207ISO/ANSI# CNMG120408Series KENLOC
$26.09List $31.29
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1819207 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerFP
Chip breaker operationFinishing
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.2031
Included angle80
Industry standard numberCNMG432FP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCermet
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1819207
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle15
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
