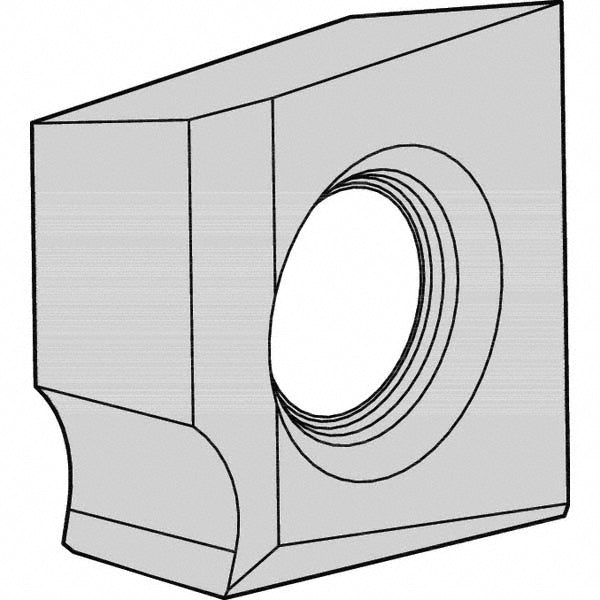

SPHX1205PCFRGN1WB Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 1819849

Kennametal

SPHX1205PCFRGN1WB Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 1819849

MFR# 1819849ISO/ANSI# SPHX1205PCFRGN1WBCat# SPHX1205PCFRGN1WBSeries SPHX

$36.19List $43.41 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1819849 is a SPHX1205PCFRGN1WB solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeSPHX1205PCFRGN1WB
Chip breakerGN
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityFix-Perfect
Cutting edge styleWiper
Hole diameter0.1969
Included angle degree90
Inscribed circle0.2047
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSPHX
Iso codeSPHX1205PCFRGN1WB
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog numberSPHX1205PCFRGN1WB
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges1
Primary workpiece materialCast Iron
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2050
Thickness range0.2000 to 0.2200
