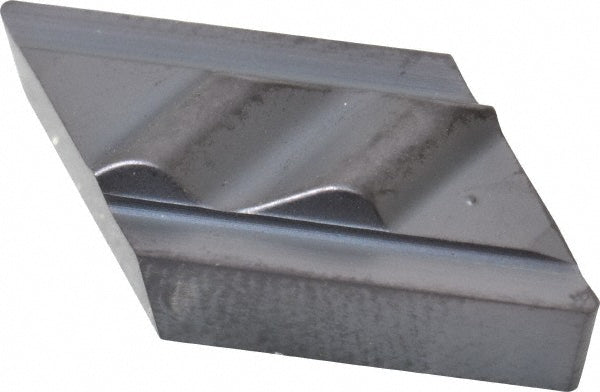

KNGX150404L20 Carbide Insert, Grade KC5010, AlTiN - Kennametal 1849250
MFR# 1849250ISO/ANSI# KNGX150404L20Series NPL
$39.58List $47.47
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 1849250 is a KNGX150404L20 carbide indexable insert, grade KC5010, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle0.3730
Insert handLeft Hand
Insert height0.1875
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert size code131F
Insert styleNPL
Iso codeKNGX150404L20
Manufacturer gradeKC5010
Material gradeP10; P20; M10; M20; K05; K10; K15; K20; N10; N20; S10; S20; H10
Maximum depth of cut0.1663
Msc manufacturer numberNPL131F
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle10
Relief angle0
ShapeParallelogram
Side length0.4990
StandardsNPL131F; KNGX150404L20
Thickness in3/16
Width0.3730
