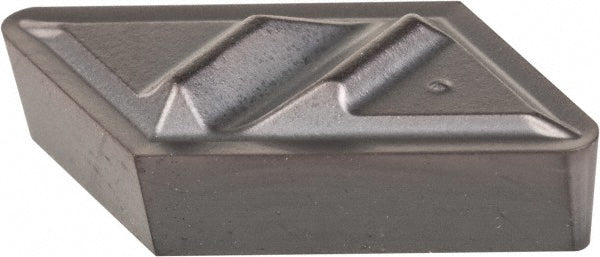

KCGR110308L08 Carbide Insert, Grade KC5025, AlTiN - Kennametal 1849903

Kennametal

KCGR110308L08 Carbide Insert, Grade KC5025, AlTiN - Kennametal 1849903

MFR# 1849903ISO/ANSI# KCGR110308L08Series Top Not

$26.44List $32.27 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
GradeKC5025
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 1849903 is a KCGR110308L08 carbide indexable insert, grade KC5025, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handLeft Hand
Insert height0.1250
Insert holding methodClamp
Insert length in3/8
Insert materialCarbide
Insert size code52L
Insert styleNPGR
Iso codeKCGR110308L08
Manufacturer gradeKC5025
Material gradeUltra Fine Grain
Maximum depth of cut0.1250
Msc manufacturer numberNPGR52L
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.3750
StandardsNPGR52L; KCGR110308L08
Thickness in1/8
Width in1/4
