Kennametal

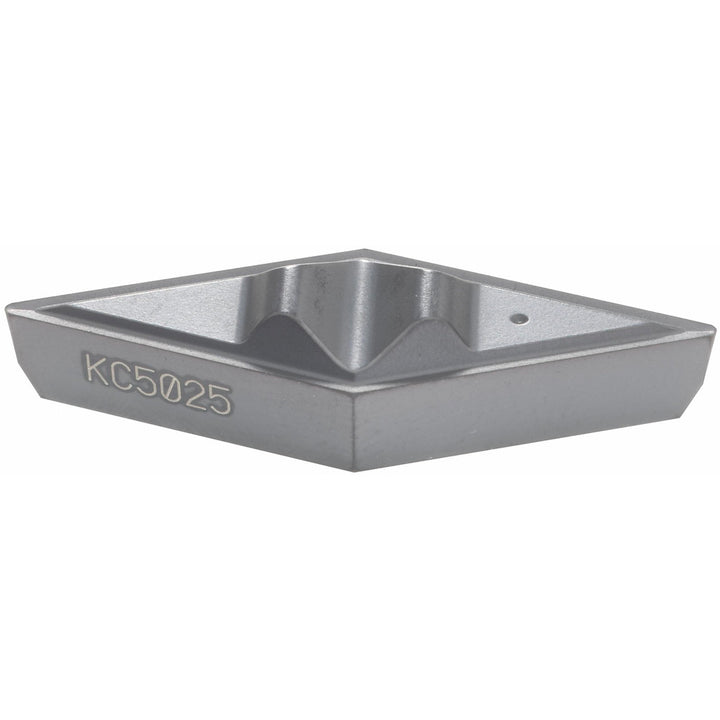

VCGR160404 Carbide Insert, Grade KC5025, AlTiN - Kennametal 1849909
MFR# 1849909ISO/ANSI# VCGR160404Series Top Not
$43.19List $51.81
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKC5025
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 1849909 is a VCGR160404 carbide indexable insert, grade KC5025, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6538
Insert materialCarbide
Insert size code331
Insert styleVPGR
Iso codeVCGR160404
Manufacturer gradeKC5025
Material gradeUltra Fine Grain
Maximum depth of cut0.2179
Msc manufacturer numberVPGR331
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.6538
StandardsVPGR331; VCGR160404
Thickness in3/16
Width in3/8
