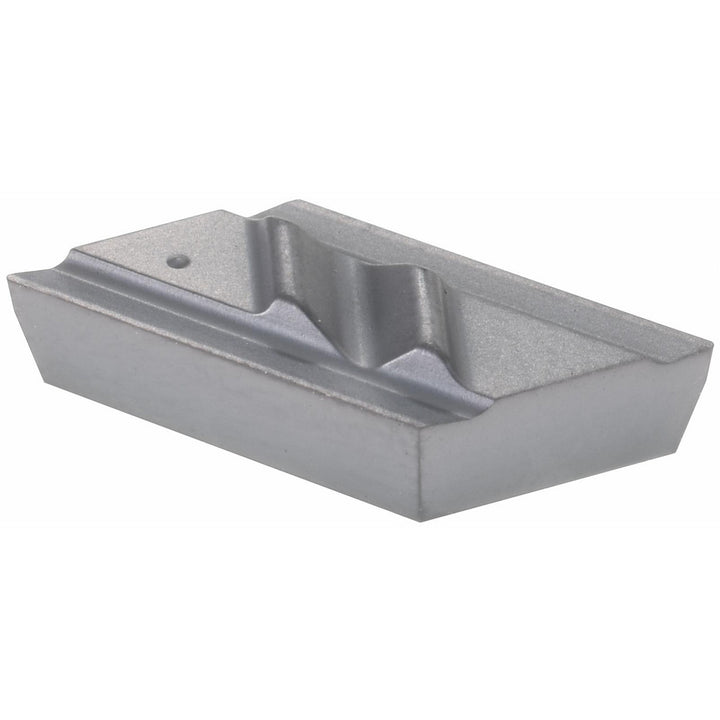

KCGX110301R15 Carbide Insert, Grade KC5025, AlTiN - Kennametal 1849983

Kennametal

KCGX110301R15 Carbide Insert, Grade KC5025, AlTiN - Kennametal 1849983

MFR# 1849983ISO/ANSI# KCGX110301R15Series Top Not

$26.31List $32.11 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 1849983 is a KCGX110301R15 carbide indexable insert, grade KC5025, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0050
Hole diameter0.0000
Included angle55
Inscribed circle0.2490
Insert handRight Hand
Insert height0.1250
Insert holding methodScrew
Insert length0.3769
Insert materialCarbide
Insert size code505
Insert styleNPR
Iso codeKCGX110301R15
Manufacturer gradeKC5025
Material gradeUltra Fine Grain
Maximum depth of cut0.1256
Msc manufacturer numberNPR505
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
ShapeParallelogram
Side length0.3769
StandardsNPR505; KCGX110301R15
Thickness in1/8
Width in1/4
