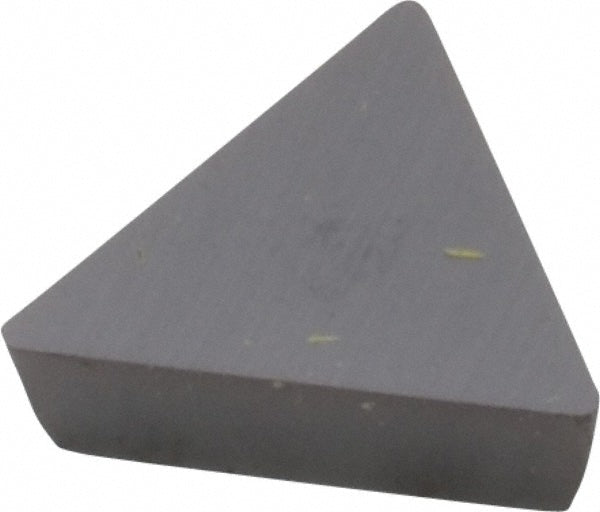

T - Triangle 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1865531

Kennametal

T - Triangle 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1865531

MFR# 1865531ISO/ANSI# TPG110304Series KENDEX

$24.33List $29.70 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1865531 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTPG221
Ansi size code221
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle60
Industry standard numberTPG221
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleTPG
Insert thickness in1/8
Iso insert codeTPG110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturers catalog number1865531
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
