Kennametal

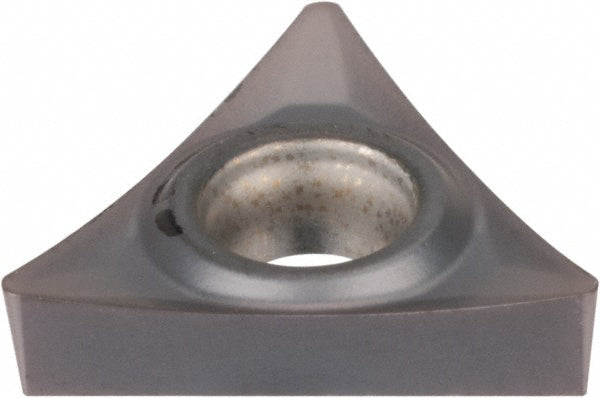

Triangle 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1867031
MFR# 1867031ISO/ANSI# TCGT2151HPSeries Screw-On
$36.36List $43.62
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1867031 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerHP
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle60degree
Industry standard numberTCGT2151HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code2151
Insert styleTCGT
Insert thickness in3/32
Length range0.4000 - 0.5000
Manufacturers catalog number1867031
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width0.4331in
Wiper edgeNo
