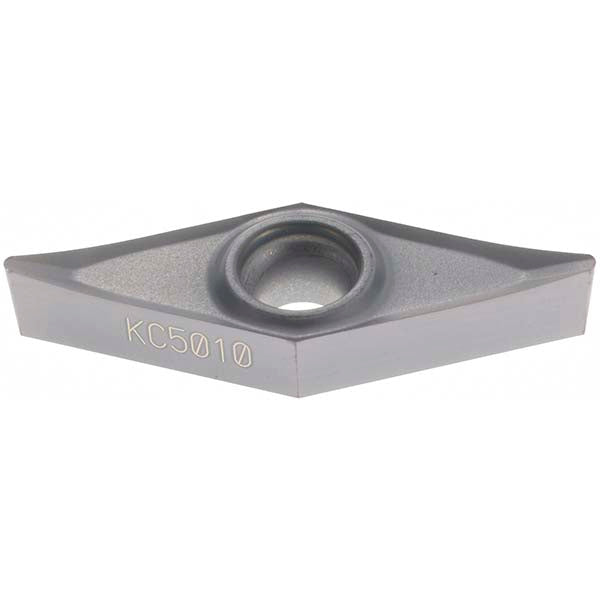

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1867060

Kennametal

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1867060

MFR# 1867060ISO/ANSI# VBGT110304Series Screw-On

$39.57List $48.30 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1867060 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVBGT221
Ansi size code221
Chip breakerHP
Chip breaker operationFinishing
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle35
Industry standard numberVBGT221HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8622
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBGT
Insert thickness in1/8
Iso insert codeVBGT110304
Iso size code110304
Length range0.7000 - 10.0000
Manufacturers catalog number1867060
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
