Kennametal

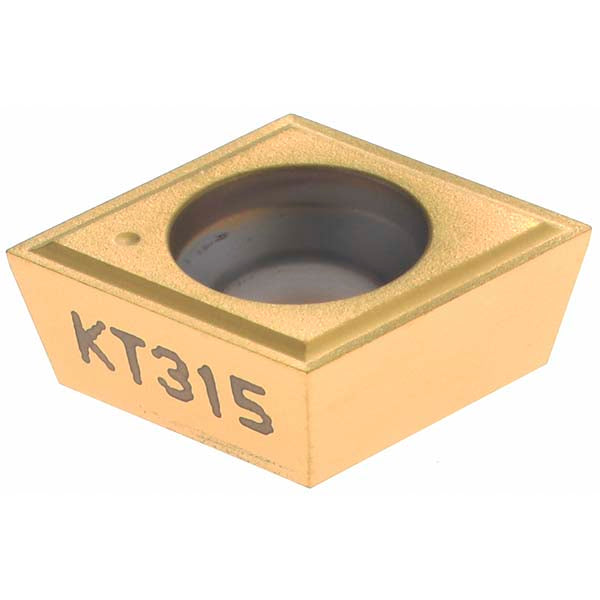

C - Diamond (Rhombic) 80-Deg 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1868254
MFR# 1868254ISO/ANSI# CPGM09T301Series Screw-On
$29.83List $35.77
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1868254 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeCPGM32502
Ansi size code32502
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius0.0039
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle80
Industry standard numberCPGM32502
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCermet
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32502
Insert styleCPGM
Insert thickness in5/32
Iso insert codeCPGM09T301
Iso size code09T301
Length range0.3000 - 0.4000
Manufacturers catalog number1868254
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
