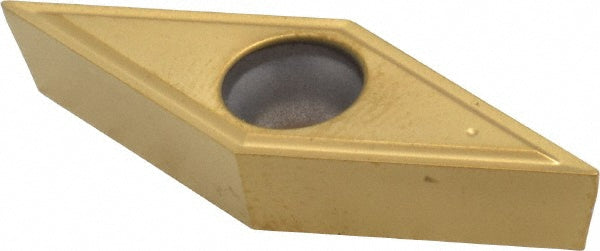

V - Diamond (Rhombic) 35-Deg 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1870039

Kennametal

V - Diamond (Rhombic) 35-Deg 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1870039

MFR# 1870039ISO/ANSI# VBMT160402Series Screw-On

$34.63List $41.53 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKT315
MaterialCermet
CoatingTiN

Description

The Kennametal 1870039 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi insert codeVBMT3305
Ansi size code3305
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle35
Industry standard numberVBMT3305LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCermet
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code3305
Insert styleVBMT
Insert thickness in3/16
Iso insert codeVBMT160402
Iso size code160402
Length range0.7000 - 10.0000
Manufacturers catalog number1870039
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
