Kennametal

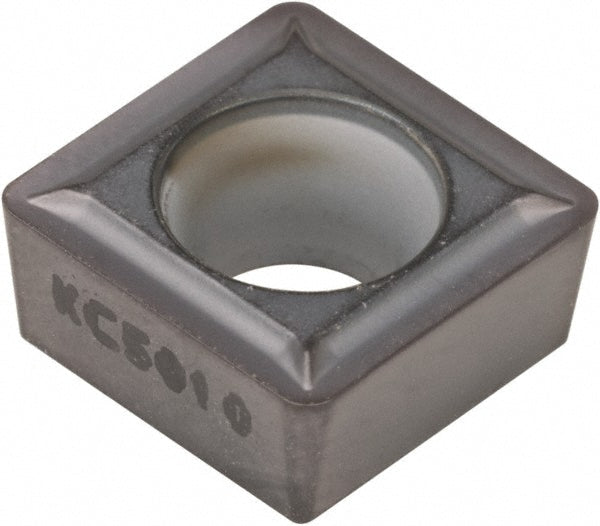

Square 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1871002
MFR# 1871002ISO/ANSI# SCMT3252LFSeries Screw-On
$29.73List $36.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1871002 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle90
Industry standard numberSCMT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code3252
Insert styleSCMT
Insert thickness in5/32
Length range0.3000 - 0.4000
Manufacturers catalog number1871002
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
