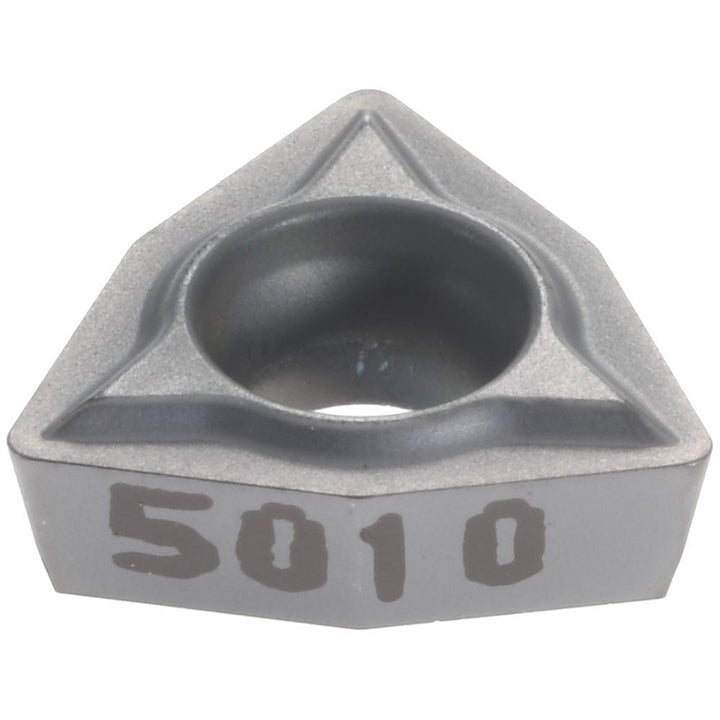

W - Trigon 80-Deg 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1871038

Kennametal

W - Trigon 80-Deg 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1871038

MFR# 1871038ISO/ANSI# WPMT110204Series Screw-On

$25.79List $31.47 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeW - Trigon 80-Deg
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1871038 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeWPMT2151
Ansi size code2151
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1142
Included angle80
Industry standard numberWPMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3418
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code2151
Insert styleWPMT
Insert thickness in3/32
Iso insert codeWPMT110204
Iso size code110204
Length range0.3000 - 0.4000
Manufacturers catalog number1871038
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3418
Wiper edgeNo
