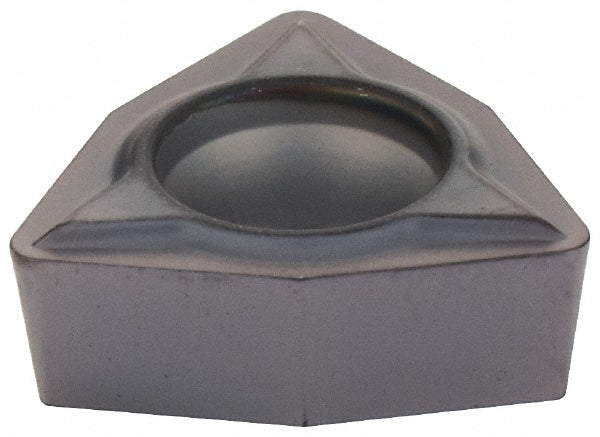

W - Trigon 80-Deg 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1871042

Kennametal

W - Trigon 80-Deg 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1871042

MFR# 1871042ISO/ANSI# WCMT06T308Series Screw-On

$29.45List $35.95 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1871042 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeWCMT3252
Ansi size code3252
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle80
Industry standard numberWCMT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.5130
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code3252
Insert styleWCMT
Insert thickness in5/32
Iso insert codeWCMT06T308
Iso size code06T308
Length range0.5000 - 0.6000
Manufacturers catalog number1871042
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.5130
Wiper edgeNo
