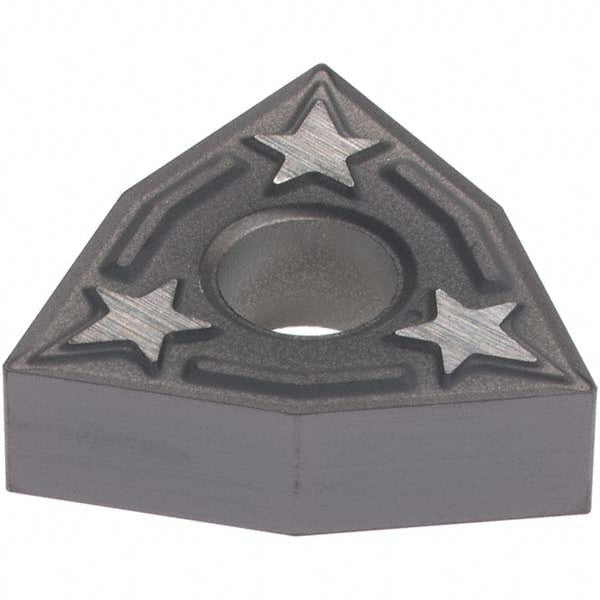

W - Trigon 80-Deg 1/2" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1871319

Kennametal

W - Trigon 80-Deg 1/2" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1871319

MFR# 1871319ISO/ANSI# WNGG080402Series KENLOC

$33.85List $41.33 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1871319 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeWNGG4305
Ansi size code4305
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle80
Industry standard numberWNGG4305LF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code4305
Insert styleWNGG
Insert thickness in3/16
Iso insert codeWNGG080402
Iso size code080402
Length range0.6500 - 0.7000
Manufacturers catalog number1871319
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width0.6840
Wiper edgeNo
