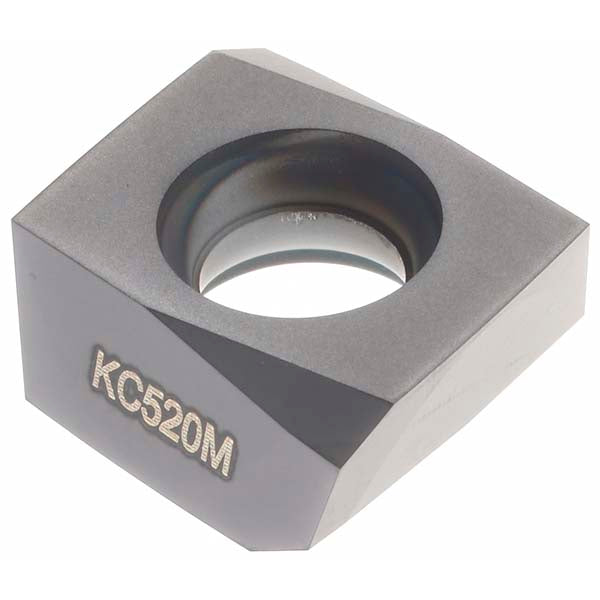

MDHX1004ZDFRGD4W Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 1874250

Kennametal

MDHX1004ZDFRGD4W Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 1874250

MFR# 1874250ISO/ANSI# MDHX1004ZDFRGD4WCat# MDHX1004ZDFRGD4WSeries MDHX

$44.46List $53.33 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1874250 is a MDHX1004ZDFRGD4W solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeMDHX1004ZDFRGD4W
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityFix-Perfect
Cutting edge styleWiper
Hole diameter0.2146
Inscribed circle in1/2
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1004
Insert styleMDHX
Iso codeMDHX1004ZDFRGD4W
Length0.4252
Length range0.4000 to 0.4500
Manufacturers catalog numberMDHX1004ZDFRGD4W
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
